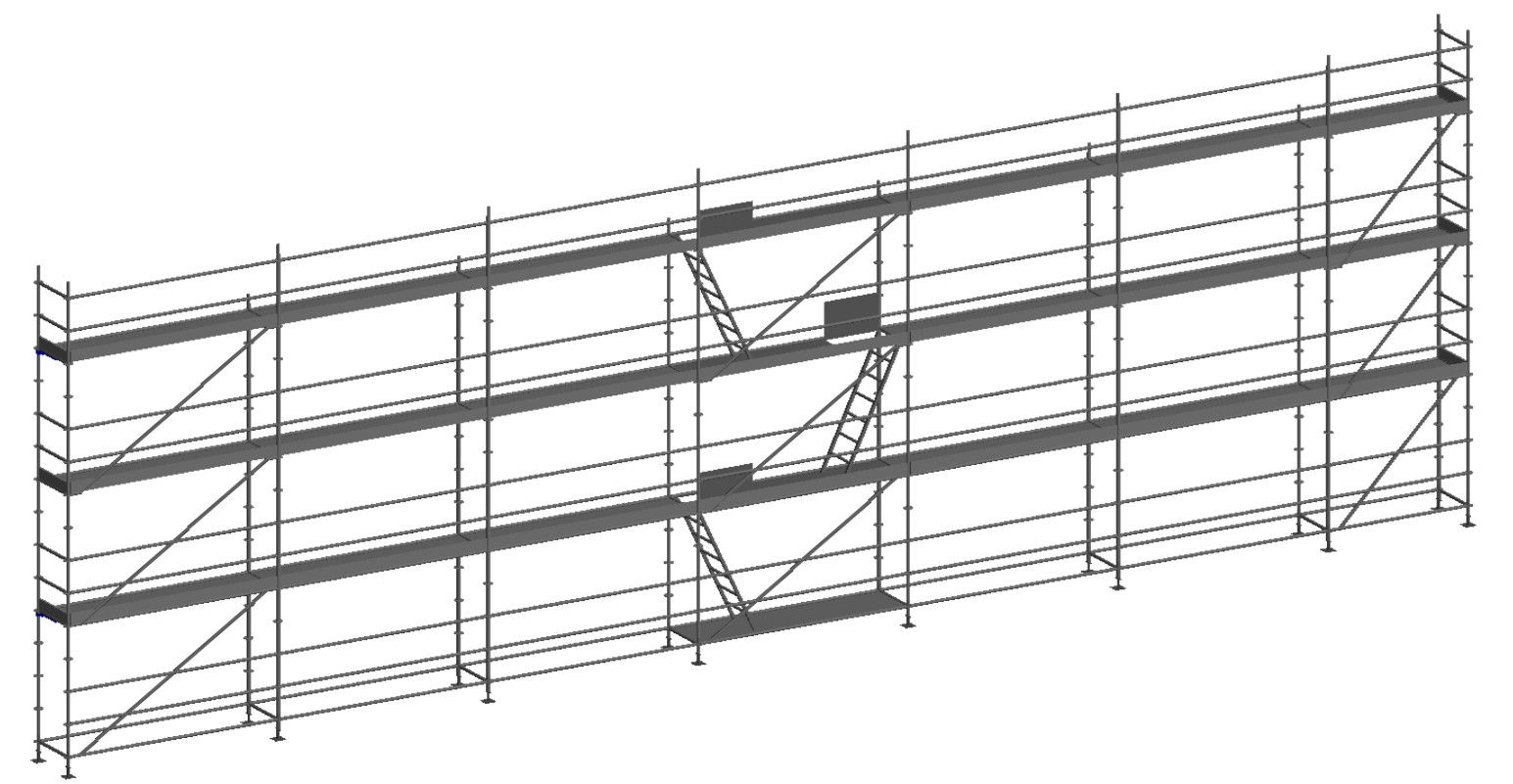

FERMAR Multidirectional Scaffolding Kit 20 x 0.73 m (H = 7.00 m)
Surface: 140 m2

Characteristics of the FERMAR European Scaffold:
Tubes Ø48 x 3 mm Galvanized finish
8 connection possibilities per rosette
Freedom of rotation throughout its perimeter
Adapts to any type of façade geometry
Ease of assembly
Economy of material
Compatible with other scaffolding systems
Certified scaffolding system

Modulation of the FERMAR Multidirectional Scaffolding Kit 20 x 0.73 m (H = 7.00 m)

Length: 6 x 3.00 + 1 x 2.00 m = 10.00 m
Width: 73 cm (presents a comfortable work platform)
Height: 3 x 2.00 m + 1.00 m of protective railing = 7.00 m

Parts List of the FERMAR European Scaffold Kit 20 x 0.73 m (H = 7.00 m)

16 Galvanized starter foot (TE00470)
16 500 spindle with zinc plated stop. (ME00005)
10 Vertical post with 1000 mm rosette. (TE00421)
48 Vertical post with 2000 mm rosette. (TE00423)
6 Diagonal 3000 x 2000 mm. (TE00448)
3 Diagonal 2000 x 2000 mm. (TE00444)
84 3000 mm spar. (TE00476)
44 730 mm spar. (TE00428)
6 Skirting board 730 galvanized mulifer. (TE00717)
32 Mod. 3000 x 300 fixed painted (TE00178)
3 Aluminum platform 3000 x 600 with trap and ladder (TE00261)
14 2000 mm spar. (TE00432)
6 Mod. 2000 x 300 fixed painted. (TE00158)
18 Skirting board 3000 galvanized multifer. (TE00458)
3 Skirting board 2000 galvanized multifer. (TE00454)
13 Ø48x500 tube with galvanized hook. (TE00372)
13 Fixed flange Ø48 according to EN 74. (ME00021)

Don't hesitate to contact us for separated pieces.

Complementary products: MADA Scaffolding Rental Management and Control Software


IMPORTANT:
Delivery to peninsular Spain is included for amounts greater than €1,000 + VAT. Be sure to check delivery costs for the rest of Europe and the world.
